Image segmentation might sound technical, but it’s essentially about partitioning an image into meaningful regions. Think of it as digitally coloring different parts of an image so that a computer can distinguish objects—like telling a cat apart from a couch in a photo. The ability for machines to do this accurately is becoming increasingly important in fields like medical imaging, satellite photo analysis, and automated inspection. UNet, a deep learning model developed specifically for this task, has become a standout. While its design may seem complex initially, once broken down, it’s surprisingly straightforward and practical.
Understanding the Core of UNet
UNet was introduced in 2015 by Olaf Ronneberger and his colleagues for biomedical image segmentation. The goal was to create a model that could perform well even with a limited number of annotated images. This sets it apart, as many deep learning models depend on massive labeled datasets to achieve good results.

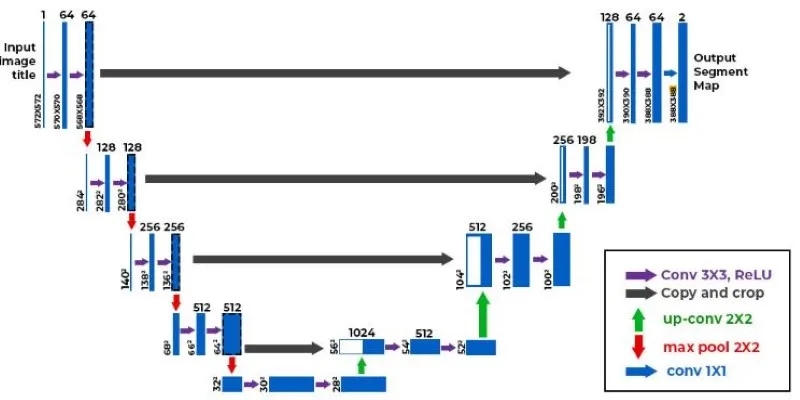

The architecture of UNet follows a symmetrical shape, often described as a “U” due to how data flows through it. The left half is a downsampling path (called the encoder), which reduces the image size and extracts high-level features through repeated combinations of convolutional layers and pooling operations. The right half is an upsampling path (decoder), which reconstructs the image back to its original size while making pixel-level predictions about which parts belong to which objects.
What makes UNet unique are the skip connections that link the encoder and decoder at each level. These connections bring in high-resolution features lost during downsampling, helping the model retain important spatial information. This is especially useful when every pixel matters, such as outlining the boundaries of a tumor or identifying roads from satellite images.
Another reason UNet excels in segmentation is its fully convolutional nature, meaning it can handle inputs of various sizes without requiring a fixed input shape. This flexibility adds to its practicality, especially when working with real-world data.
How UNet Makes Image Segmentation Practical
Technically, image segmentation is about classification, but not just of entire images. Each pixel gets its label. This is much harder than merely recognizing that a picture contains a car; the model must identify which specific pixels are part of that car and which are not.
UNet handles this through a combination of encoding the “what” and decoding the “where.” The encoder processes the image through several layers to understand complex features, including shapes, edges, and patterns. As the image moves through these layers, it becomes smaller but richer in meaning. The decoder then gradually upsamples this compact data back to the original image dimensions while using the skip connections to preserve detail.
For example, if you have an image of cells and want to isolate each one for analysis, traditional object detection models might just put a box around them. However, in medical research, that’s not helpful—you need precise boundaries. UNet excels here because it works at the pixel level and retains both context and detail.
Training UNet typically involves a loss function that compares the predicted mask to the actual labeled mask. Common choices include cross-entropy loss or Dice coefficient loss, which measures the overlap between predicted and actual regions. This helps the model learn how to draw more accurate boundaries as training progresses.
UNet can also be used with data augmentation techniques—such as rotating, flipping, or scaling images during training—to overcome small dataset limitations. This feature was a major reason for its success in medical tasks, where large labeled datasets are rare.
Real-World Applications of UNet

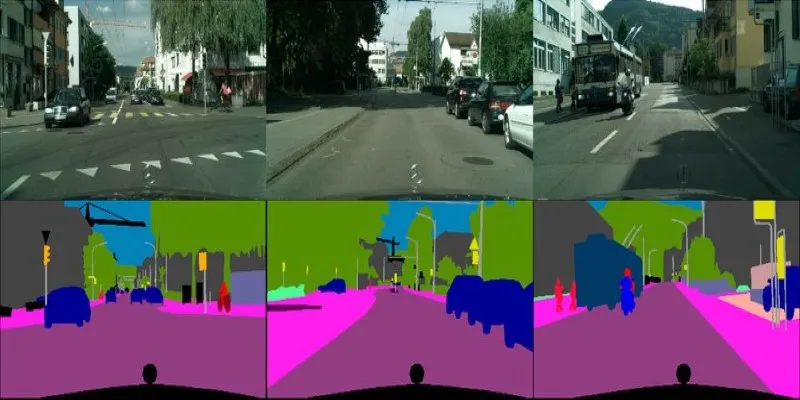

UNet has been adopted in a wide range of fields beyond its medical roots. In agriculture, it helps identify crop boundaries from aerial imagery. In autonomous driving, it can separate lanes, pedestrians, and road signs from background clutter. In industrial settings, it’s used to detect defects on production lines. The consistent factor across all these uses is the need for pixel-level precision.
UNet models are often implemented using frameworks like TensorFlow or PyTorch, and open-source versions are widely available. This accessibility has helped accelerate experimentation and deployment, especially in research and prototyping environments. Despite the technical depth involved, UNet remains approachable, especially for those familiar with convolutional neural networks.
Learning image segmentation with tools like UNet becomes less about memorizing theory and more about understanding how each part of the model contributes to the final output. Once you grasp the interplay between the encoder, decoder, and skip connections, it becomes easier to tune the model for specific tasks. Image segmentation also benefits from visual feedback. Unlike classification, where results are just numbers, segmentation outputs can be overlaid on the original image, making it easier to spot where the model performs well or needs improvement. This visual nature makes it one of the more intuitive deep-learning tasks to troubleshoot and refine.
Challenges in Using UNet for Image Segmentation
However, using UNet isn’t without challenges. While the original version is quite lightweight compared to other deep learning models, its accuracy can be further improved by modifications. Variants like UNet++ and Attention UNet build on the original by adding extra layers or attention mechanisms to refine predictions. These tweaks often lead to better results but require more computational resources and longer training times.
Another practical challenge is annotation. Image segmentation requires pixel-wise labels, which are time-consuming and costly to produce. Unlike classification tasks, where one label per image is enough, segmentation needs every pixel to be marked. Some newer techniques, such as weakly supervised or semi-supervised learning, aim to reduce the burden of labeling; however, these are still maturing and often come with trade-offs in performance or reliability.
Conclusion
UNet has made image segmentation accessible and practical by combining precision with a simple yet effective design. Its use of skip connections and a fully convolutional structure allows for detailed pixel-level labeling, even with limited data. While challenges like labeling effort and compute needs exist, UNet remains one of the most effective tools for learning image segmentation, especially in fields where visual accuracy directly supports research, analysis, or decision-making.
